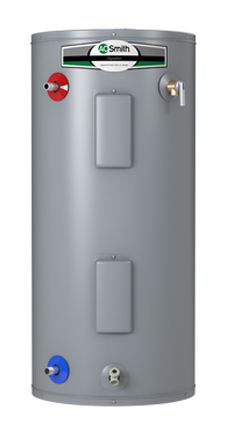

40 Gallon Tall 6-Year Manufactured Housing Side Connect 4500-Watt Single Elements Electric Water Heater

Model: E6-40M6-45SV Lowe's Item #: 816157

Product Description

  • Ideal hot water delivery for HUD approved households with 2-3 people when sized appropriately
  • HUD approved for mobile home and manufactured housing applications
  • One 4,500-watt copper heating element provides a first hour delivery of 54 gallons
  • Save money and energy with this energy efficient model that operates at a 0.95 Uniform Energy Factor
  • Short 49.75-in H x 22-in diameter profile designed for easier installation in mobile home and manufactured housing applications
  • Premium heating element, anode rod and fused ceramic tank shield provide superior tank protection and extend water heater life
  • Non-CFC polyurethane foam insulation and factory-installed heat trap nipples reduce heat loss for maximum efficiency and energy savings
  • Easy temperature control with adjustable thermostat can be set higher for dishwashers and laundry machines or lower as needed
  • 6-Year limited residential warranty gives you peace of mind



Signature® 100 Series Features

These features are included with all Signature® 100 Series water heaters.

Tank Guard®

Product Features

  • Ideal hot water delivery for HUD approved households with 2-3 people when sized appropriately
  • HUD approved for mobile home and manufactured housing applications
  • One 4,500-watt copper heating element provides a first hour delivery of 54 gallons
  • Save money and energy with this energy efficient model that operates at a 0.95 Uniform Energy Factor
  • Short 49.75-in H x 22-in diameter profile designed for easier installation in mobile home and manufactured housing applications
  • Premium heating element, anode rod and fused ceramic tank shield provide superior tank protection and extend water heater life
  • Non-CFC polyurethane foam insulation and factory-installed heat trap nipples reduce heat loss for maximum efficiency and energy savings
  • Easy temperature control with adjustable thermostat can be set higher for dishwashers and laundry machines or lower as needed
  • 6-Year limited residential warranty gives you peace of mind



Clock - Luxurious Shower - 5 Cost Yes Bathtub

How This Model Will Perform In Your Home...

These stats are based on a home in  map-pinNolensville, TN   To view or adjust our performance assumptions, view advanced settings

  • 20 minutes
    single shower length
  • 2.6 showers
    back-to-back
  • 2.2 showers
    at the same time
  • 53 gallons
    max tub size
  • $573/YEAR
    estimated energy cost

Many factors affect the actual performance of a water heater. This represents our closest approximation of your likely experience with this water heater using National Averages, but actual performance may vary depending on factors beyond our ability to control or estimate. To view or adjust our assumptions of the most common factors that impact this product’s performance using National Averages, please view the advanced settings. *Annual energy costs are estimated from the energy efficiency of each water heater, your household’s estimated water usage & set temperature, the average groundwater temperature for your location, and residential energy prices as reported by the Department of Energy.

RESOURCES

  • Product Dimensions

    Type: Short
    Height: 50"
    Diameter: 22"
    Width: 22"
    Depth: 22"
    Weight: "

    Configuration and Overview

    Nominal Capacity:
    ?Nominal capacity is the representative number pursuant to the safety standard certification process for water heaters
    40
    Rated Storage Volume:
    ?Rated Storage Volume = Rated storage volume is the measured storage volume defined by the Department of Energy.
    36
    UEF: 0.95
    Family Size: 3
    Limited Warranty Tank: 6 years
    Limited Warranty Parts: 6 years
    Max Wattage: 4500
    Voltage: 240
    Water Connection Location: Side
    Water Connection Size: 3/4"
    T&P Relief Valve: Yes
  • Owners Manual

    Comprehensive information about your new appliance - from getting started to cleaning and maintenance - with answers to frequently asked questions.

    A. O. Smith Electric Users Manual
