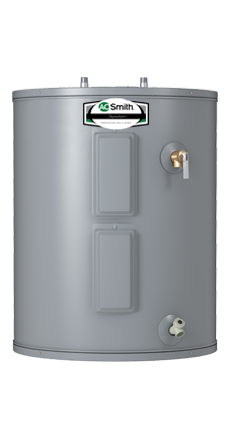

36 Gallon Lowboy 6-Year 4500/4500-Watt Elements Electric Water Heater

Model: E6-36L45DV Lowe's Item #: 816155

Product Description

  • Ideal hot water delivery for households with 2-3 people when sized appropriately
  • Two 4,500-watt copper heating elements provide a first hour delivery of 51 gallons
  • Save money and energy with this energy efficient model that operates at a 0.92 Uniform Energy Factor (UEF)
  • Low-profile 32-in H x 24-in diameter design with top water connections for easier installation under counters, bathroom vanities or in cabinets
  • Premium heating elements, anode rod and fused ceramic tank shield provide superior tank protection and extend water heater life
  • Non-CFC polyurethane foam insulation and factory-installed heat trap nipples reduce heat loss for maximum efficiency and energy savings
  • Easy temperature control with adjustable thermostat can be set higher for dishwashers and laundry machines or lower as needed
  • Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensures safe operation
  • 6-Year limited residential warranty gives you peace of mind



Signature® 100 Series Features

These features are included with all Signature® 100 Series water heaters.

Tank Guard®

Product Features

  • Ideal hot water delivery for households with 2-3 people when sized appropriately
  • Two 4,500-watt copper heating elements provide a first hour delivery of 51 gallons
  • Save money and energy with this energy efficient model that operates at a 0.92 Uniform Energy Factor (UEF)
  • Low-profile 32-in H x 24-in diameter design with top water connections for easier installation under counters, bathroom vanities or in cabinets
  • Premium heating elements, anode rod and fused ceramic tank shield provide superior tank protection and extend water heater life
  • Non-CFC polyurethane foam insulation and factory-installed heat trap nipples reduce heat loss for maximum efficiency and energy savings
  • Easy temperature control with adjustable thermostat can be set higher for dishwashers and laundry machines or lower as needed
  • Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensures safe operation
  • 6-Year limited residential warranty gives you peace of mind



RESOURCES

  • Product Dimensions

    Type: Lowboy
    Height: 32"
    Diameter: 24"
    Width: 24"
    Depth: 24"
    Weight: "

    Configuration and Overview

    Nominal Capacity:
    ?Nominal capacity is the representative number pursuant to the safety standard certification process for water heaters
    36
    Rated Storage Volume:
    ?Rated Storage Volume = Rated storage volume is the measured storage volume defined by the Department of Energy.
    33
    UEF: 0.92
    Family Size: 3
    Limited Warranty Tank: 6 years
    Limited Warranty Parts: 6 years
    Max Wattage: 4500
    Voltage: 240
    Water Connection Location: Top
    Water Connection Size: 3/4"
    T&P Relief Valve: Yes
  • Owners Manual

    Comprehensive information about your new appliance - from getting started to cleaning and maintenance - with answers to frequently asked questions.

    A. O. Smith Electric Users Manual
